What is a lithium battery welding and packaging machine?

In lithium-ion battery manufacturing, welding and packaging are critical stages that determine the seal integrity, consistency, and safety of the battery cells. An integrated welding and packaging machine for lithium batteries is a piece of automated production equipment that combines processes—such as tab welding, cutting, inspection, and taping, alongside aluminum-laminated film forming, cell insertion, sealing, and laser marking—into a single line. Commonly used in the manufacture of pouch cells and solid-state batteries, these systems aim to achieve high-throughput, low-contamination, and highly consistent production within a compact footprint.

I. Why is an integrated welding and sealing machine needed?

Traditional separate-unit setups involve fragmented processes and frequent material transfers, which are prone to generating dust and causing interference or positioning errors. Integrated equipment utilizes unified transport, fixturing, and inspection systems to minimize intermediate handling and improve yield rates. For pouch cells, where tab welding and aluminum-laminated film sealing demand high standards for cleanliness and seal thickness, an integrated solution facilitates superior process control.

II. Core Processes: Welding and Encapsulation Stages

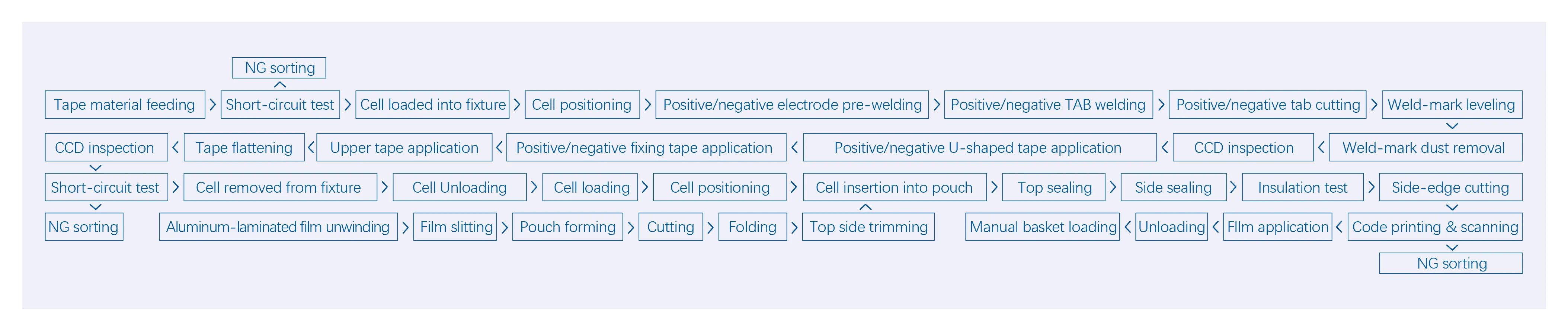

The welding stage typically encompasses tab pre-welding, final welding, cutting, dust removal, CCD inspection, and tape application. High-speed production lines require real-time, in-line inspection of appearance and performance to prevent defective units from proceeding to subsequent stages. The encapsulation stage covers aluminum-laminated film forming (cup drawing), folding, cell insertion, multi-side sealing, inspection, inkjet coding and scanning, and film application.

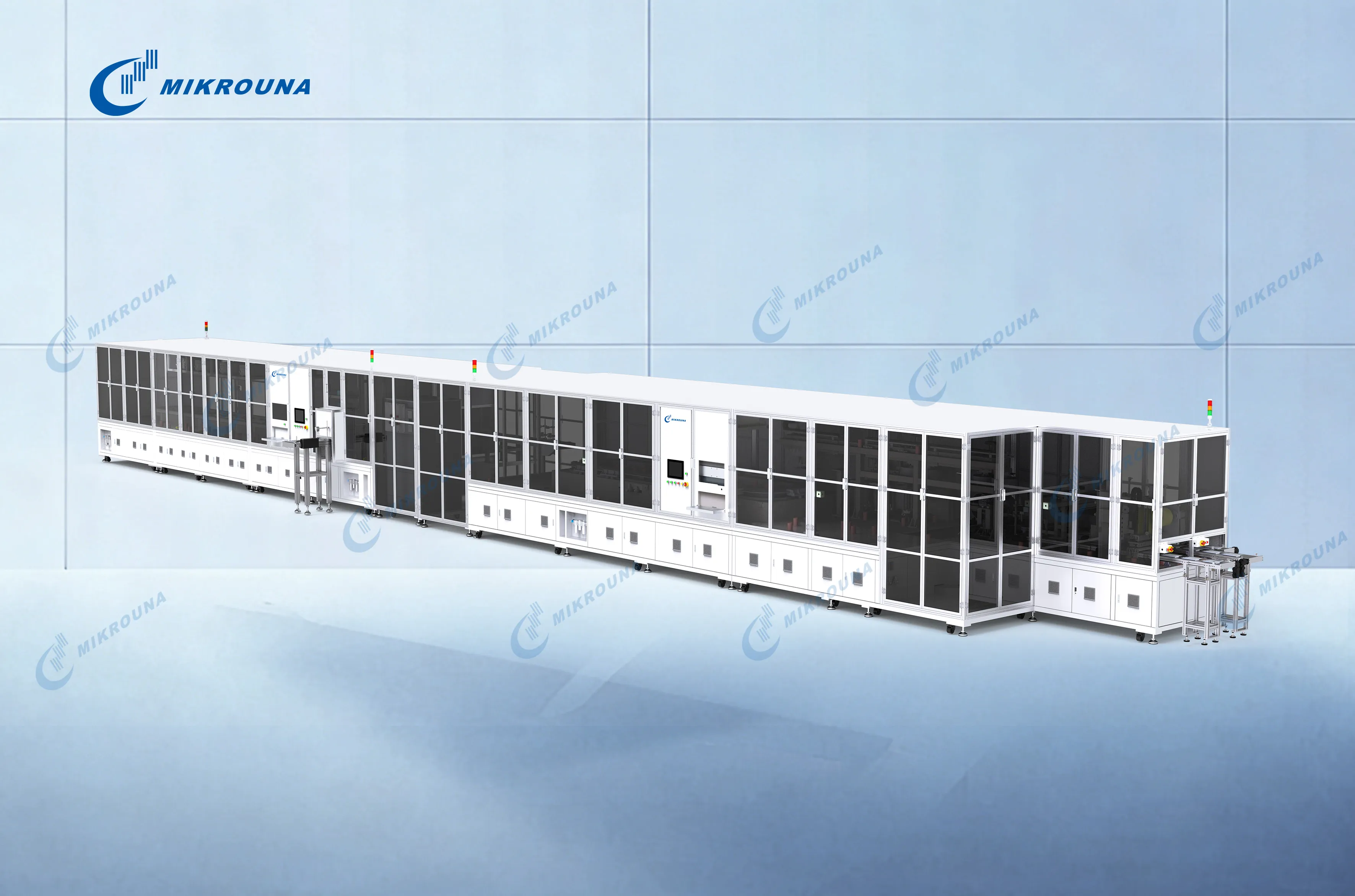

Taking mikrouna's 20 PPM integrated welding and encapsulation machine as an example, the system achieves a production capacity of 20 units per minute, with both welding and encapsulation stages capable of this rate. Precision encapsulation utilizes servo drives, allowing sealing thickness to be controlled within ±10 μm, while the forming depth for the aluminum-laminated film supports digital adjustment.

III. How does equipment structure affect quality?

At high production rates, transfer stability and fixture cleanliness are critical. Some systems utilize magnetic levitation-based circular transfer lines to achieve high-speed, smooth motion and precise positioning; offline, wireless fixtures rely on external power sources for opening and closing, thereby minimizing cable wear, mechanical interference, and particulate contamination.

The integration of a vacuum pressure-holding system enables rapid station-side connection for gas supply and pressure maintenance, allowing fixtures to circulate independently while remaining clean. A modular machine layout also facilitates maintenance and system expansion. Collectively, these design features influence the sealing reliability and quality consistency of the battery cell manufacturing process.

IV. Flexible Compatibility and Application Scenarios

The integrated lithium battery welding and packaging machine is not limited to a single specification. Its flexible compatibility is typically demonstrated by the range of cell dimensions it can handle; for instance, it accommodates various cell specifications with widths of 40–80 mm, lengths of 100–180 mm, and thicknesses of 5–10 mm. It is primarily used in manufacturing lines for lithium and solid-state batteries, making it particularly well-suited for the efficient production of high-quality pouch cells.

Regarding equipment solutions, mikrouna’s integrated welding and packaging machine supports customization, allowing for configurations tailored to specific cell dimensions and production line cycle times.

V. Conclusion

The value of integrated lithium battery welding and packaging machines lies in their ability to combine welding, packaging, and inspection into a stable, controllable, and automated process. For production lines manufacturing pouch cells or solid-state batteries, opting for integrated equipment—characterized by customizability, ease of maintenance, and a complete closed-loop inspection system—is often more conducive to stable, long-term production.
