Automatic Lithium Battery Electrode Stacking Machine MK-ADP200DJ
Mikrouna Automatic battery electrode stacking machine designed for pouch and prismatic cells. Features Z-fold technology, CCD vision alignment, and tension control.
Mikrouna automatic battery electrode stacking machine features a dual-station parallel architecture,integrating functions such as magazine loading, CCD positioning,automatic separator unwinding, electrode transfer, web guiding,stacking, taping, and cell unloading. It enables fully automated production from loading to cell unloading.
Core Advantages
●Stacking efficiency: ≤ 0.5s/sheet/station
●Auxiliary time: ≤15s
●Alignment between electrode and separator:Center deviation ±0.3mm
●Separator end-face alignment: ±0.3mm
●Adjacent electrode center alignment: ±0.3mm
●Overall alignment: ±0.4mm
●Number of stacking layers:Configurable within the thickness range

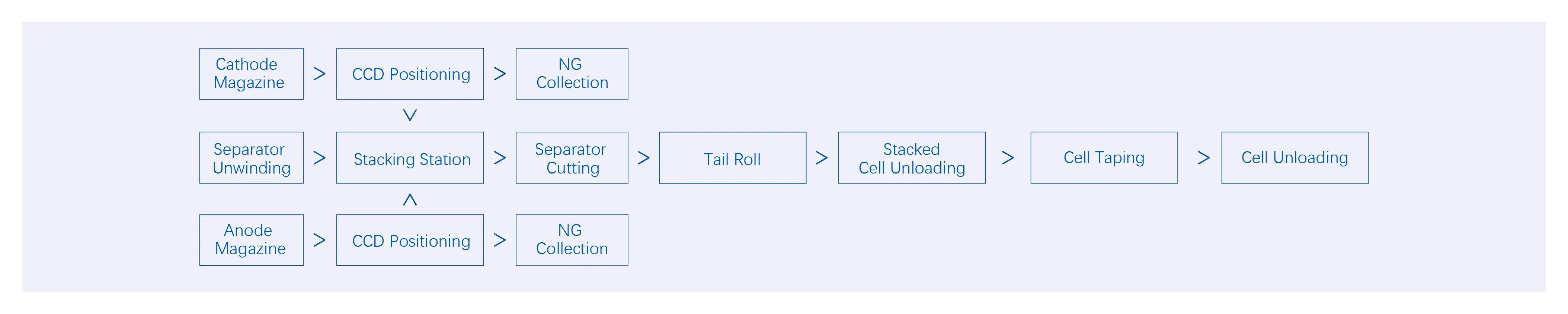

Lithium Battery Stacking Machine Process Flow
