Automatic Lithium Battery Electrode Calendering Machine MK-GYJ6070C
The mikrouna lithium battery calender uses a roll-to-roll and high-pressure method to compact the coated positive and negative electrode sheets, thereby increasing the energy density of the battery.
This automatic lithium battery electrode calendering machine features a continuous roll-to-roll process. Through tension control,precision calendering, and an online detection system, it achieves closed-loop control of electrode thickness and density, meeting the requirements for large-scale,high-consistency production.
Core Advantages
●Roll gap control accuracy: +1~2 μm
●Thickness consistency(transverse):≤1.5%(≤2 μm)
●Thickness consistency (longitudinal):≤1.0%
●Roll parallelism: <1 μm / full width
●Linear speed control accuracy: ±0.1% FS
●Tension control accuracy: ±1~2% FS
●Edge trimming width accuracy: ±0.05 mm
●Rewinding end-face neatness (staggered edge):≤0.1 mm

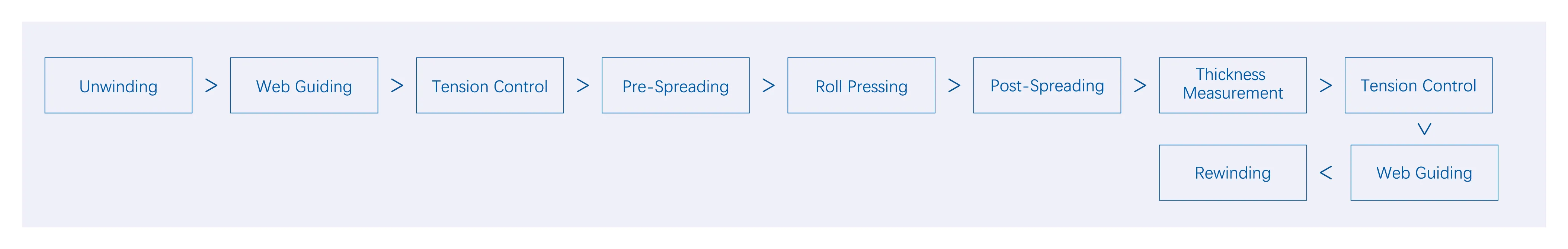

Lithium Battery Calendering Machine Process Flow
